Shipping now!

Our BTC Package contains our 36V 72Ah battery, custom tray with heavy duty ratchet strap and waterproof 36V charger are all included in this package.

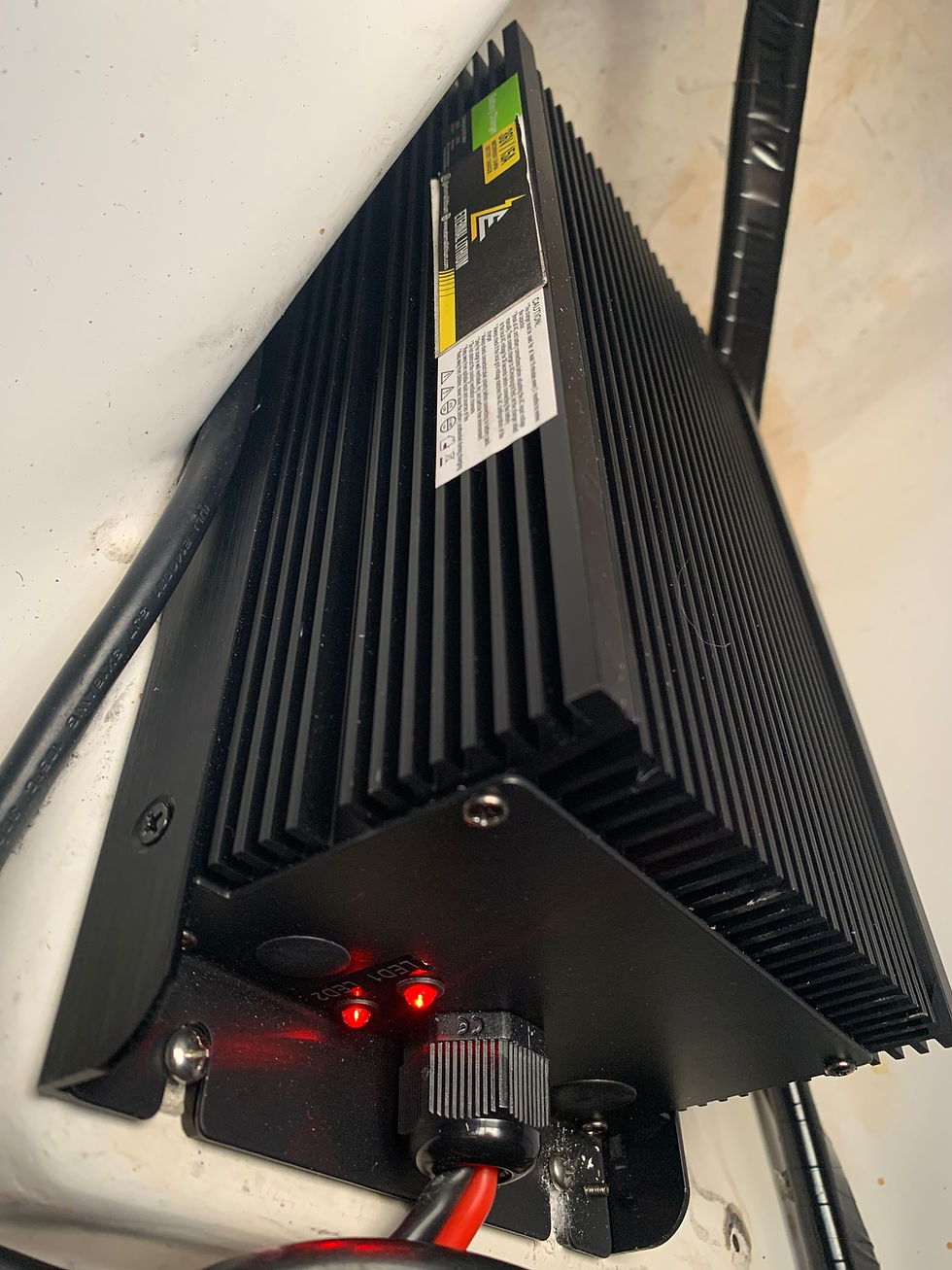

Maximize your battery life with a compatible high powered charger. The mobile app connects with bluetooth and allows status monitoring.



Specifications

Rated Voltage: 38.4 V

Rated Capacity: 72 Ah

Max Charge Voltage: 43.8 V

Cut-off voltage: 30 V

Charge current: 40 A

Continuous discharge current: 80 A

Max discharge current: 160 A

Dimension: 525*240*220mm - 20.7" * 9.45" *8.7"

Weight: 28.4kg - 62.6lb

BMS Function: Overvoltage protection, undervoltage protection, overcurrent protection, temperature protection, short-circuit protection

UL Certificated 32700 Cylindrical LiFePO4 Cell, 12S14P

ABS Shell



Standard Charge

  • Charge Voltage: 43.8V
  • Charge Mode: CC-CV
  • Charge Current: From 5A to 80A
  • Recommended Current: <40A
  • Max Charge Current: 80A
  • Charge High Temperature Protection: 60°C
  • Charge High Temperature Recovery: 50°C
  • Low Temperature Protection: 0°C
  • Low Temperature Recovery: 5°C



Standard Discharge

  • Continuous Discharge Current: 80A
  • Max Peak Current: 160A for 5 seconds
  • Discharge Cutoff Voltage: 40V
  • High Temperature Protection: 65°C
  • High Temperature Recovery: 55°C
  • Low Temperature Protection: -20°C
  • Low Temperature Recovery: -10°C



Operation Environment

Charge Temperature: 0°C to 45°C (32°F to 113°F) at 60 +/- 25% relative humidity

Discharge Temperature: -20°C to 65°C (-4°F to 149°F) at 60 +/- 25% relative humidity

Storage Temperature: 5°C to 45°C (41°F to 113°F) at 60 +/- 25% relative humidity

Water Dust Resistance: IP67

36V 72Ah BTC Package

$2,299.00Price
