The absolute King of the jungle! Our 36V100Ah is a custom build for those who want even MORE power than the sufficient 36V72Ah. If you're putting in 14 hour practice days trolling on 10, fishing heavy current, or want to be off grid, this is the battery for you. BTC package available with charger, custom tray and ratchet strap.



12 Year Warranty!



Specifications

Rated Voltage: 38.4 V

Rated Capacity: 80 Ah

Max Charge Voltage: 43.8 V

Cut-off voltage: 30 V

Charge current: 40 A

Continuous discharge current: 80 A

Max discharge current: 160 A

Dimension: 525*270*220mm20.7" * 10.7" *8.7"

Weight: 28.4kg 62.6lb

BMS Function: Overvoltage protection, undervoltage protection, overcurrent protection, temperature protection, short-circuit protection

UL Certificated 32700 Cylindrical LiFePO4 Cell, 12S14P

ABS Shell



Standard Charge

  • Charge Voltage: 43.8V
  • Charge Mode: CC-CV
  • Charge Current: From 5A to 80A
  • Recommended Current: <40A
  • Max Charge Current: 80A
  • Charge High Temperature Protection: 60°C
  • Charge High Temperature Recovery: 50°C
  • Low Temperature Protection: 0°C
  • Low Temperature Recovery: 5°C



Standard Discharge

  • Continuous Discharge Current: 80A
  • Max Peak Current: 160A for 5 seconds
  • Discharge Cutoff Voltage: 40V
  • High Temperature Protection: 65°C
  • High Temperature Recovery: 55°C
  • Low Temperature Protection: -20°C
  • Low Temperature Recovery: -10°C



Operation Environment

Charge Temperature: 0°C to 45°C (32°F to 113°F) at 60 +/- 25% relative humidity

Discharge Temperature: -20°C to 65°C (-4°F to 149°F) at 60 +/- 25% relative humidity

Storage Temperature: 5°C to 45°C (41°F to 113°F) at 60 +/- 25% relative humidity

Water Dust Resistance: IP65

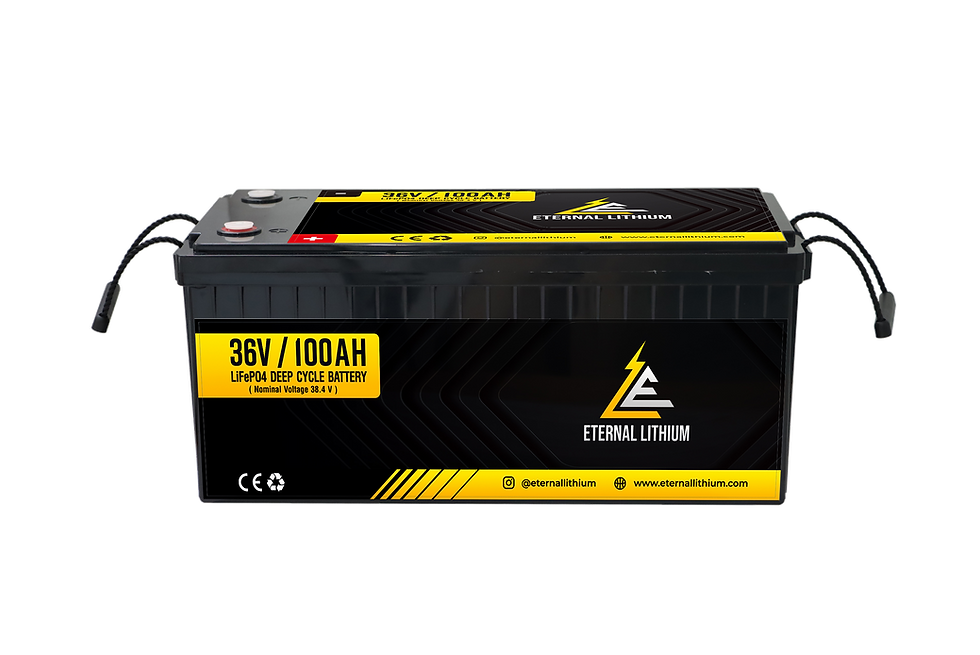

36V100Ah King Kong Battery

$2,399.00Price
