This 36V system comes with two 36V50Ah and a 36V10A waterproof charger giving you a total of 100Ah.  This system is designed for new Vexus and most older Ranger bass boats that have space issues fitting the single King Kong 36V battery systems. You can run them in paralell or on a switch giving you 100Ah to ensure you're powered for multiple days on the water.



36V50Ah Battery Specifications

Rated Voltage: 38.4 V

Rated Capacity: 40 Ah

Max Charge Voltage: 43.8 V

Cut-off voltage: 30 V

Charge current: 40 A

Continuous discharge current: 80 A

Max discharge current: 160 A

Dimension: Group 31

Weight: 36 lbs.

BMS Function: Overvoltage protection, undervoltage protection, overcurrent protection, temperature protection, short-circuit protection

UL Certificated 32700 Cylindrical LiFePO4 Cell, 12S14P

ABS Shell



Standard Charge

  • Charge Voltage: 43.8V
  • Charge Mode: CC-CV
  • Charge Current: From 5A to 80A
  • Recommended Current: <40A
  • Max Charge Current: 80A
  • Charge High Temperature Protection: 60°C
  • Charge High Temperature Recovery: 50°C
  • Low Temperature Protection: 0°C
  • Low Temperature Recovery: 5°C



Standard Discharge

  • Continuous Discharge Current: 80A
  • Max Peak Current: 160A for 5 seconds
  • Discharge Cutoff Voltage: 40V
  • High Temperature Protection: 65°C
  • High Temperature Recovery: 55°C
  • Low Temperature Protection: -20°C
  • Low Temperature Recovery: -10°C



Operation Environment

Charge Temperature: 0°C to 45°C (32°F to 113°F) at 60 +/- 25% relative humidity

Discharge Temperature: -20°C to 65°C (-4°F to 149°F) at 60 +/- 25% relative humidity

Storage Temperature: 5°C to 45°C (41°F to 113°F) at 60 +/- 25% relative humidity

Water Dust Resistance: IP67

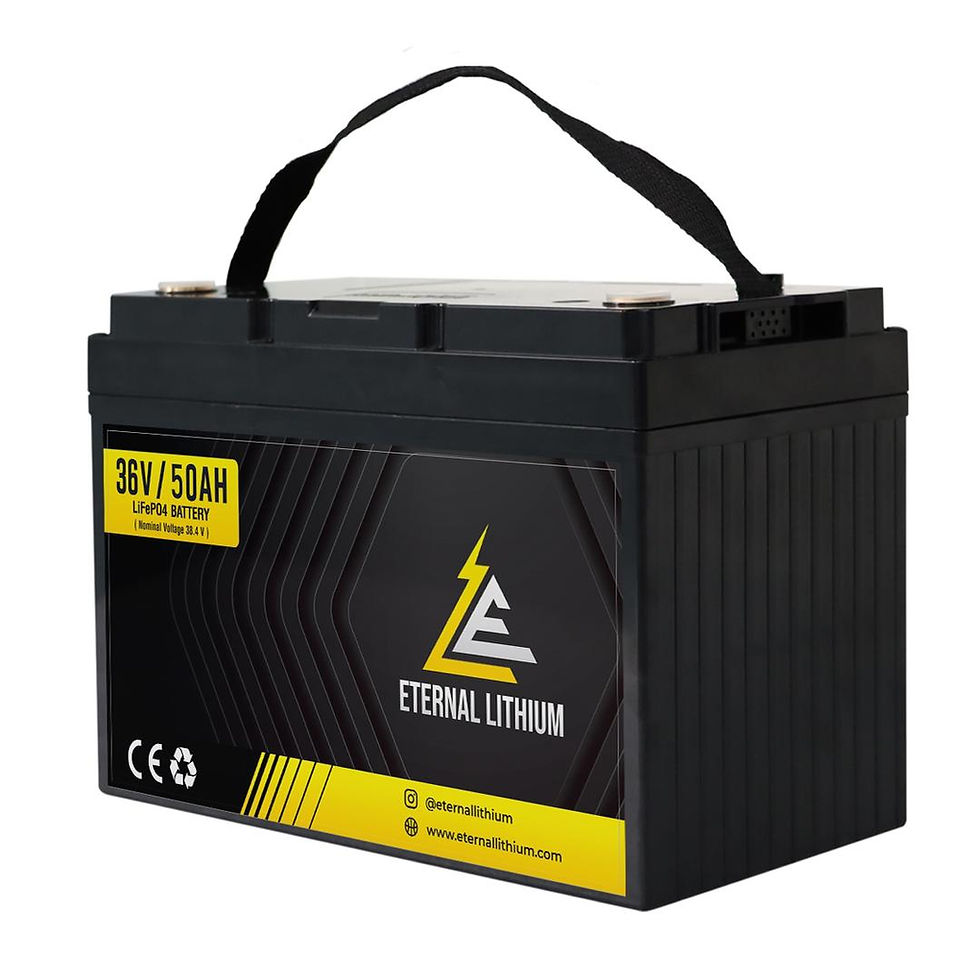

36V100Ah B2C Package - 2 x 36V50Ah & WP Charger

$2,749.00Price
